MannTek Dry Disconnect Coupling Hose Unit

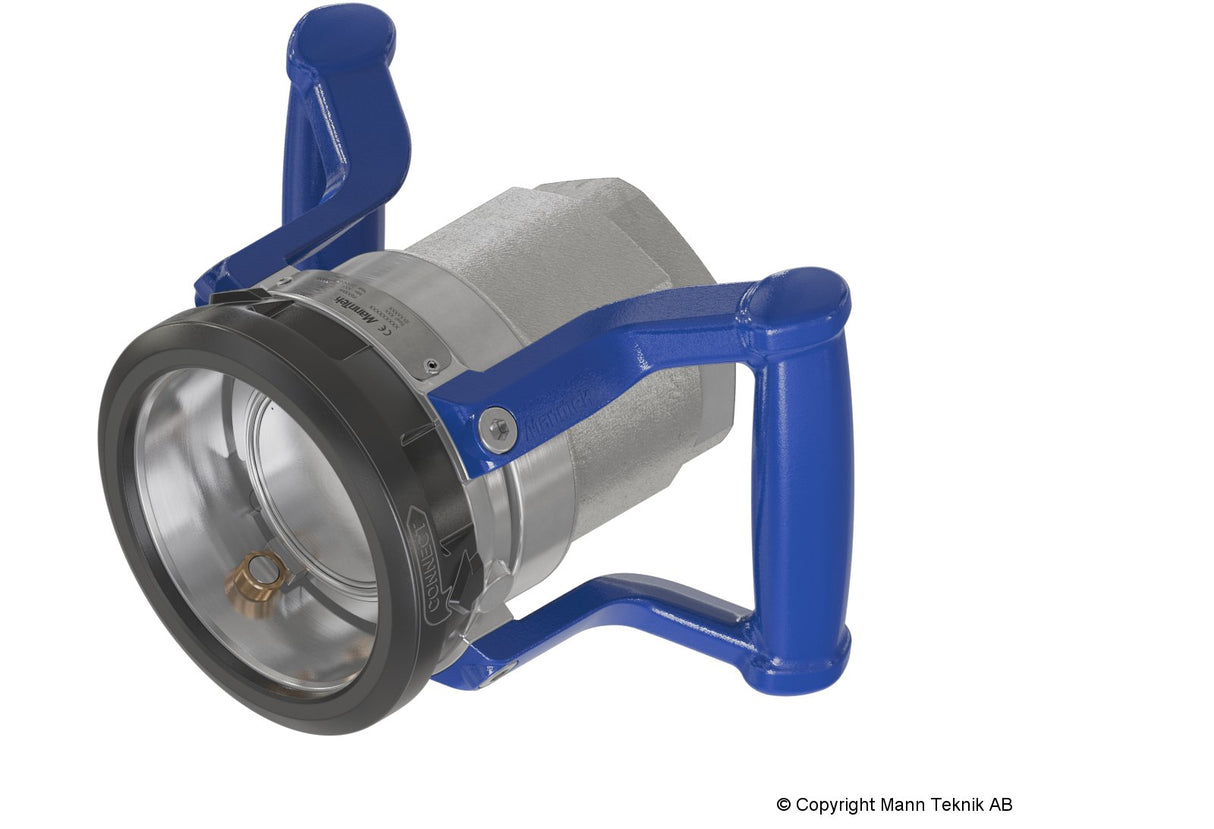

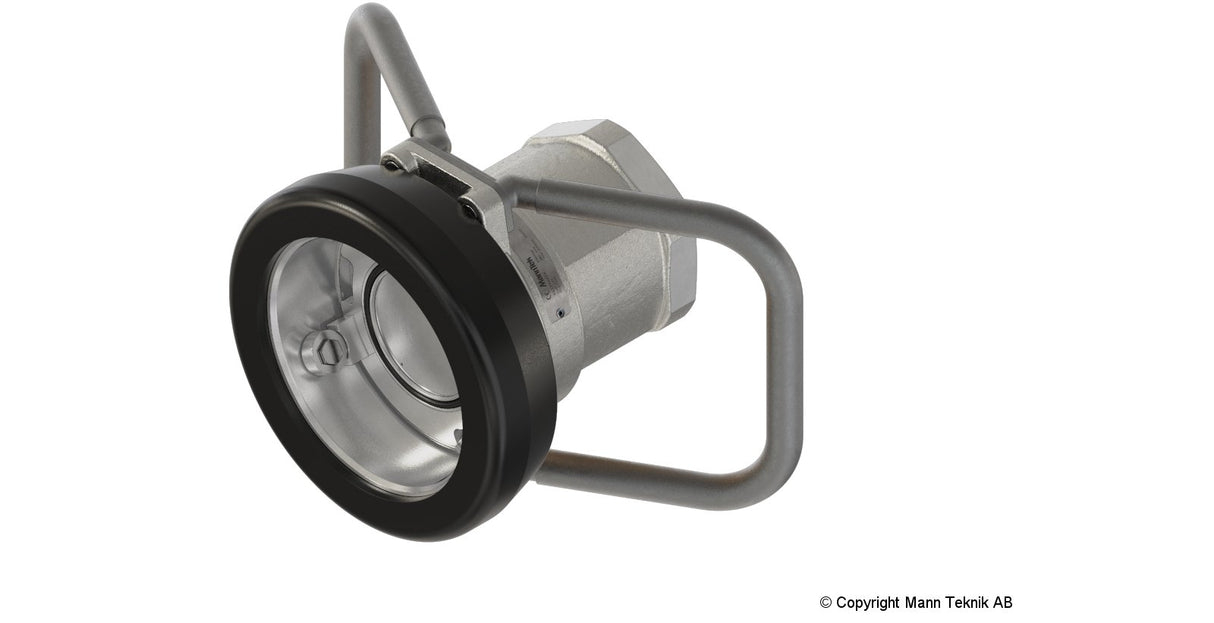

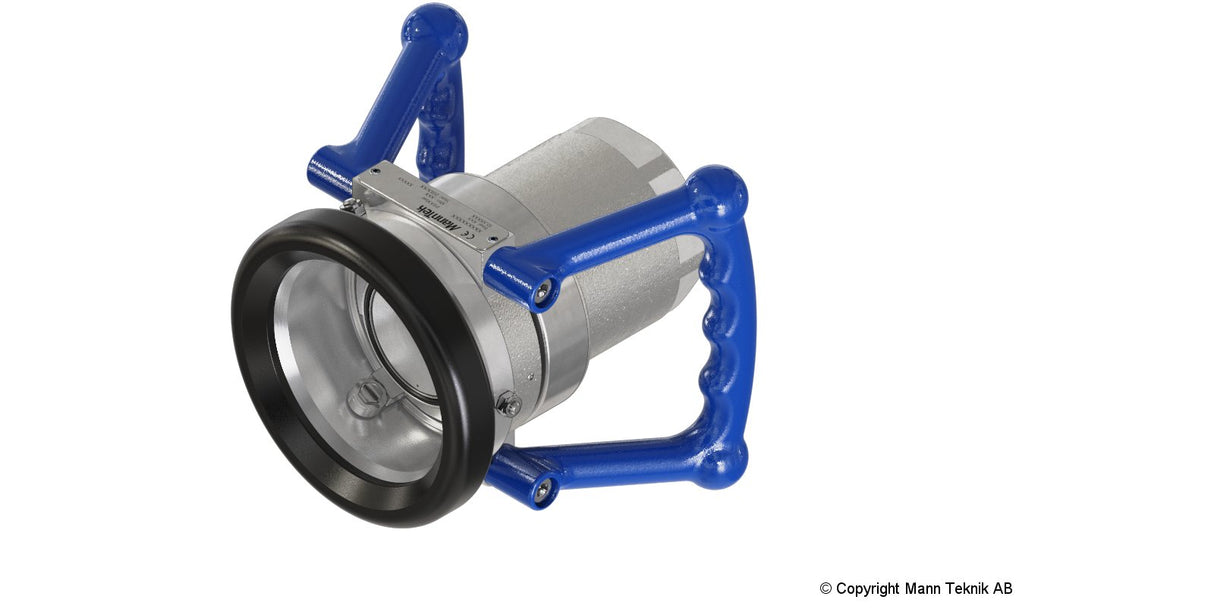

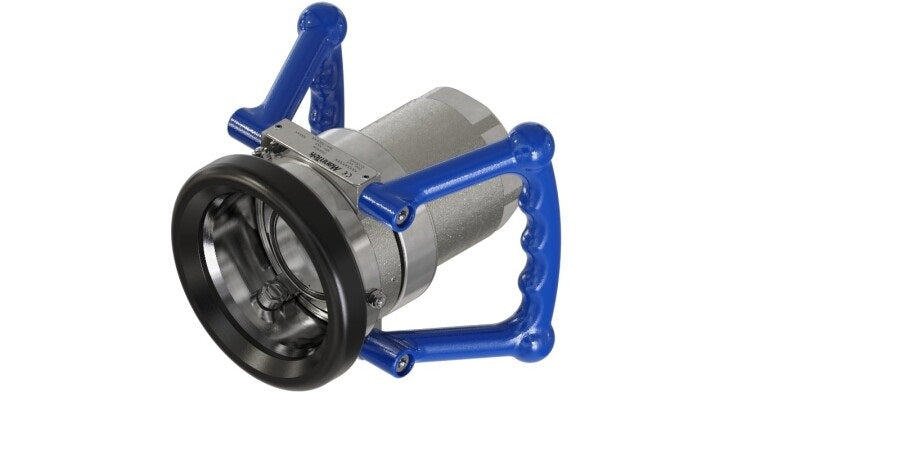

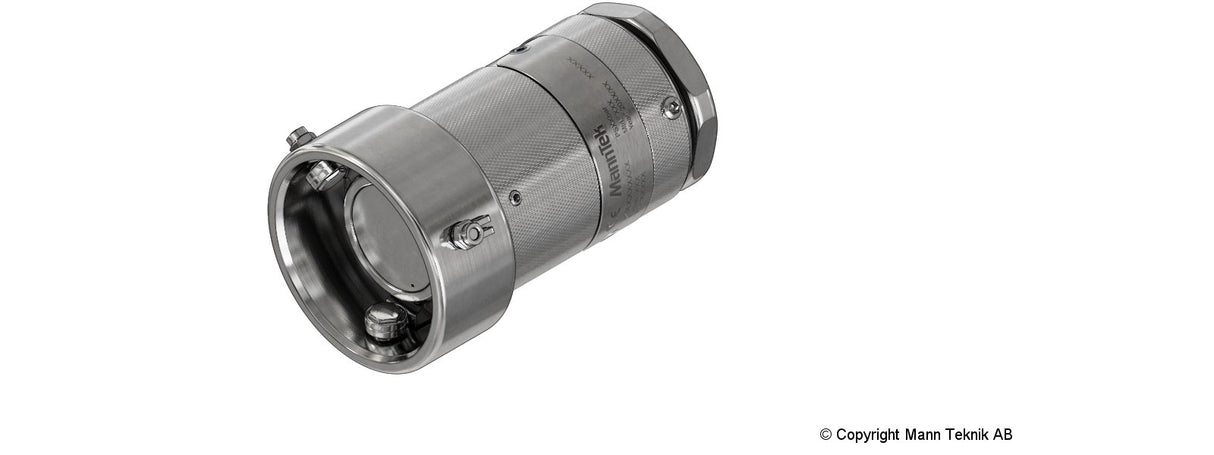

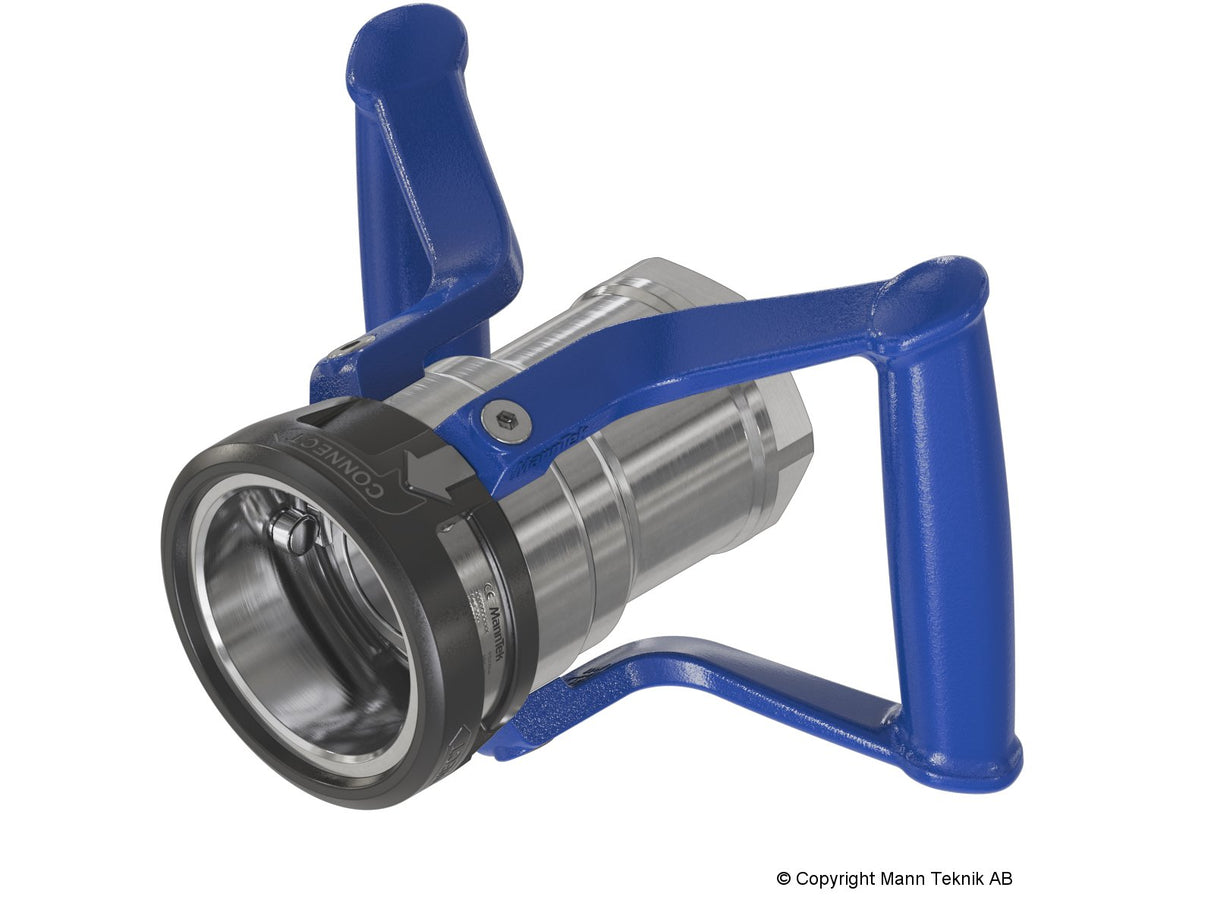

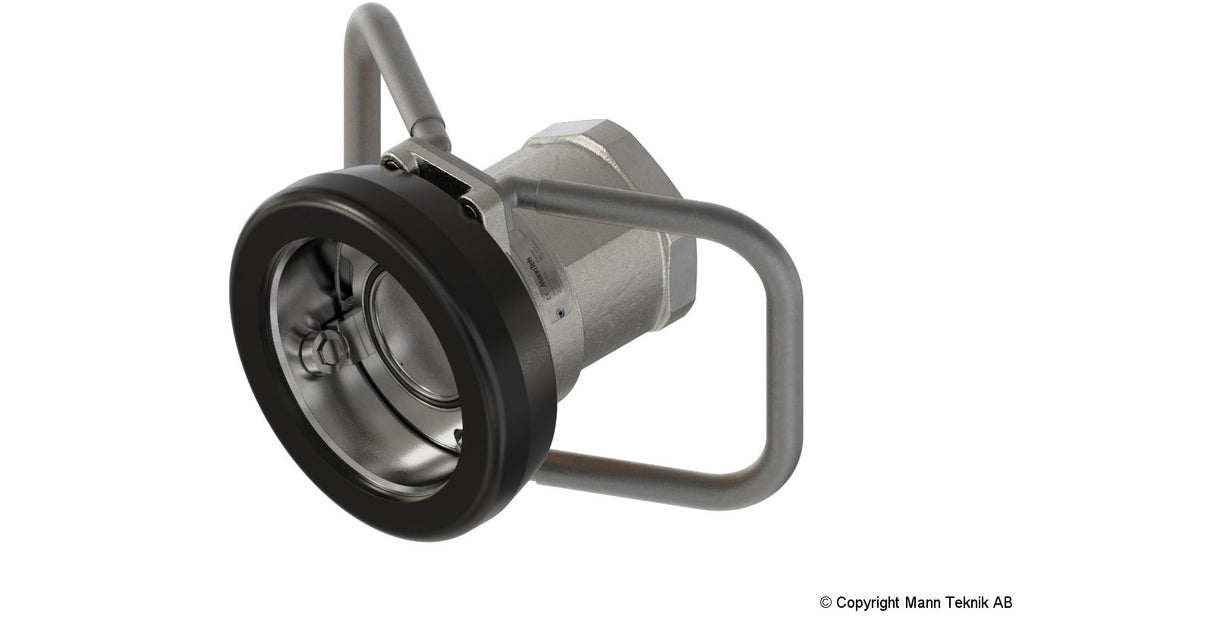

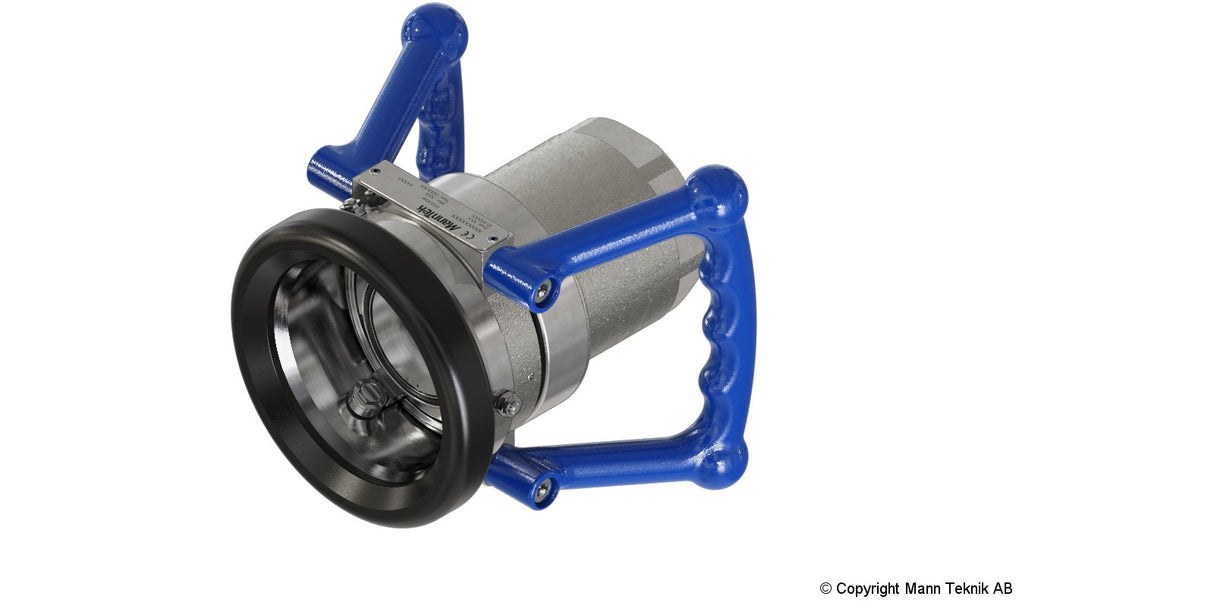

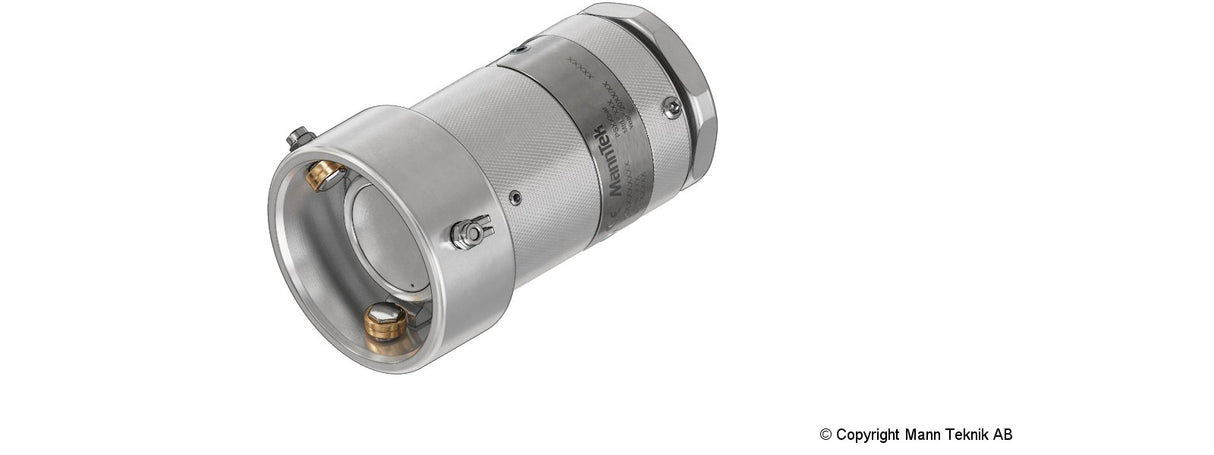

MannTek Dry Disconnect Hose Unit (Female)

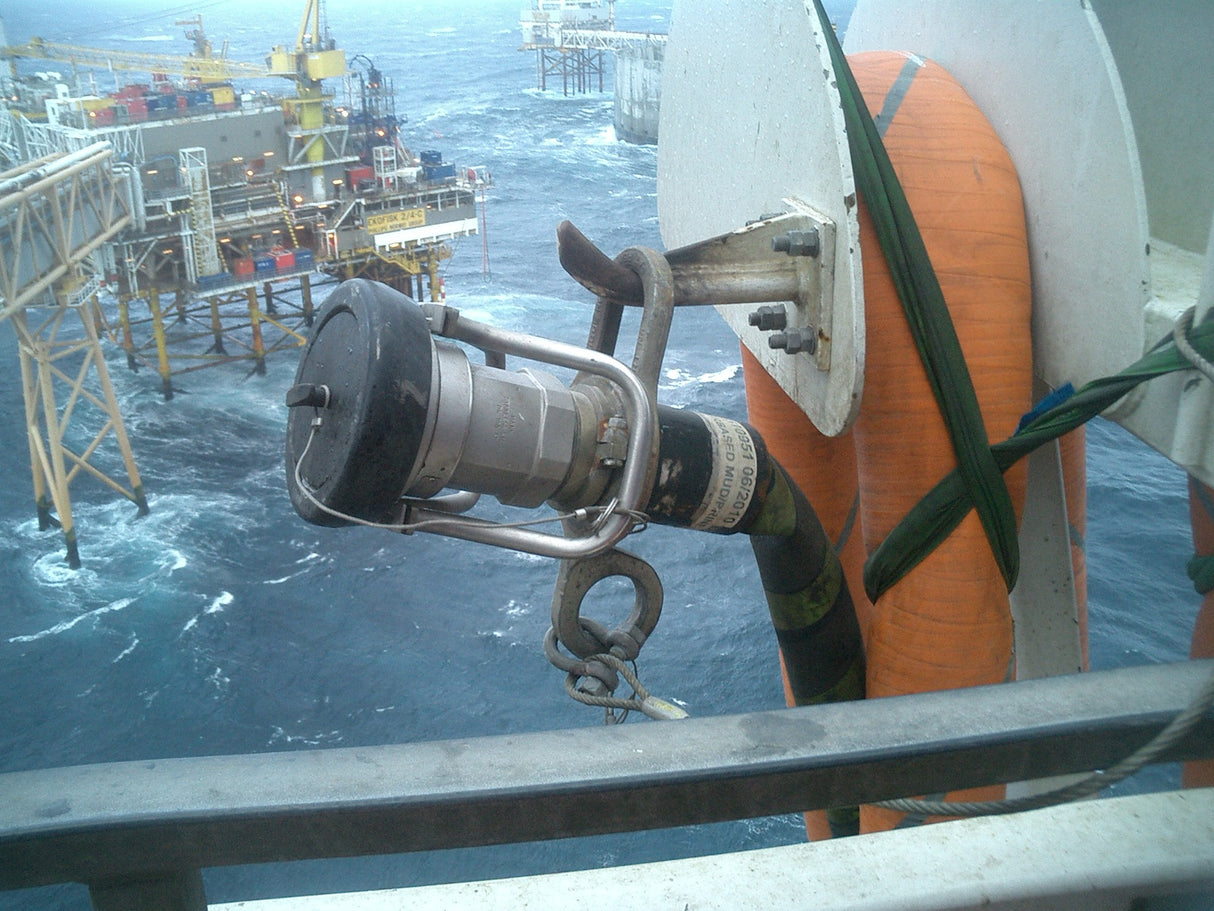

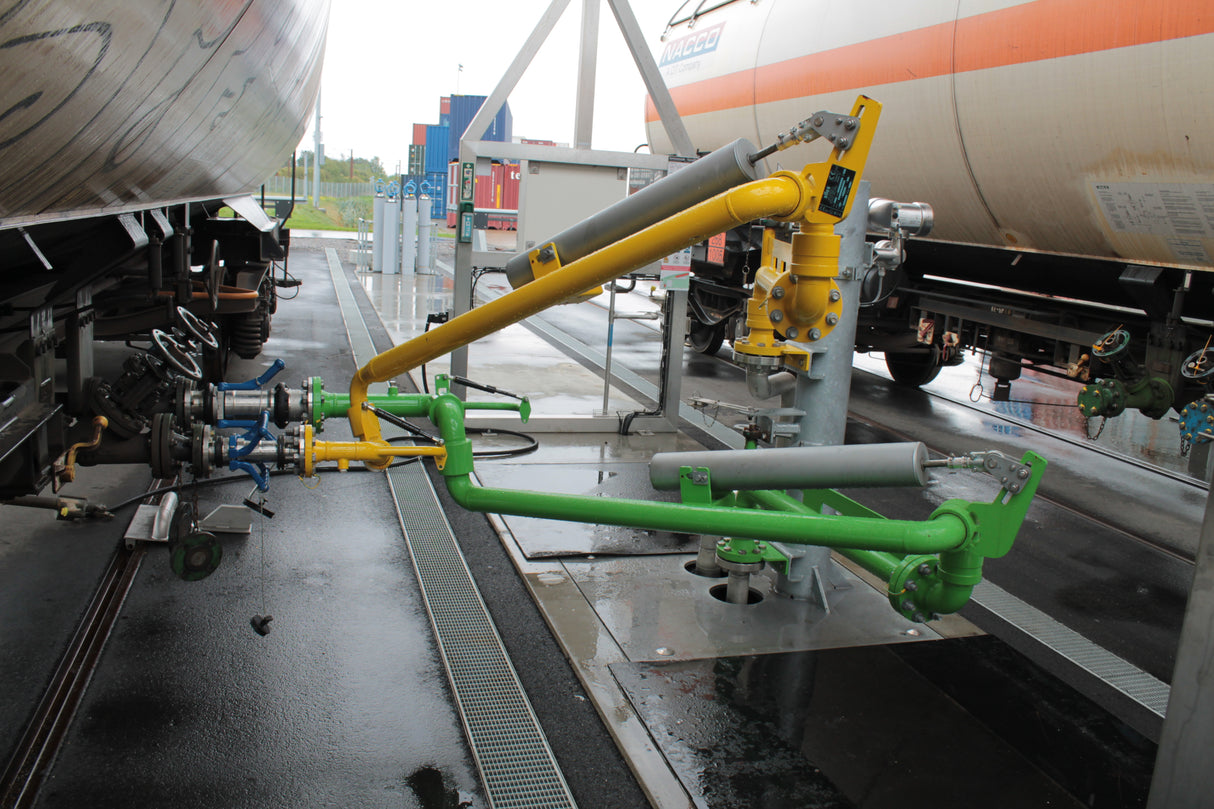

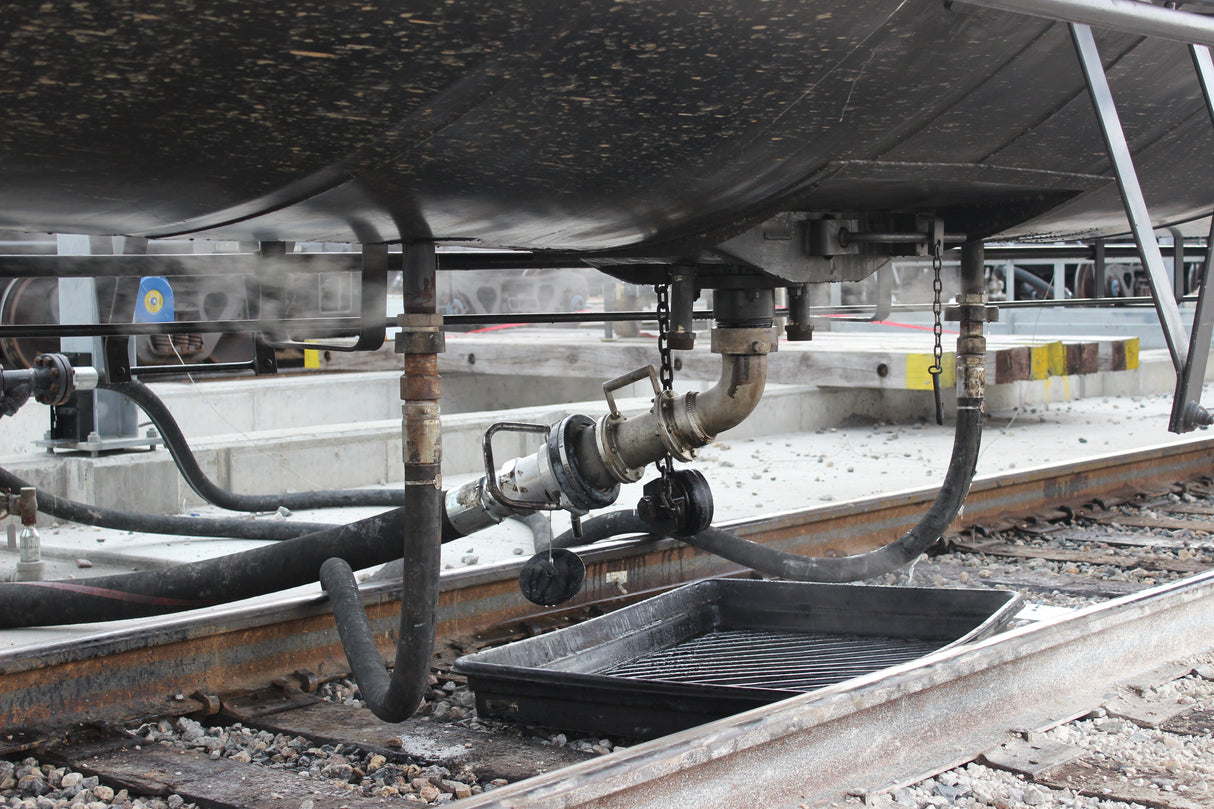

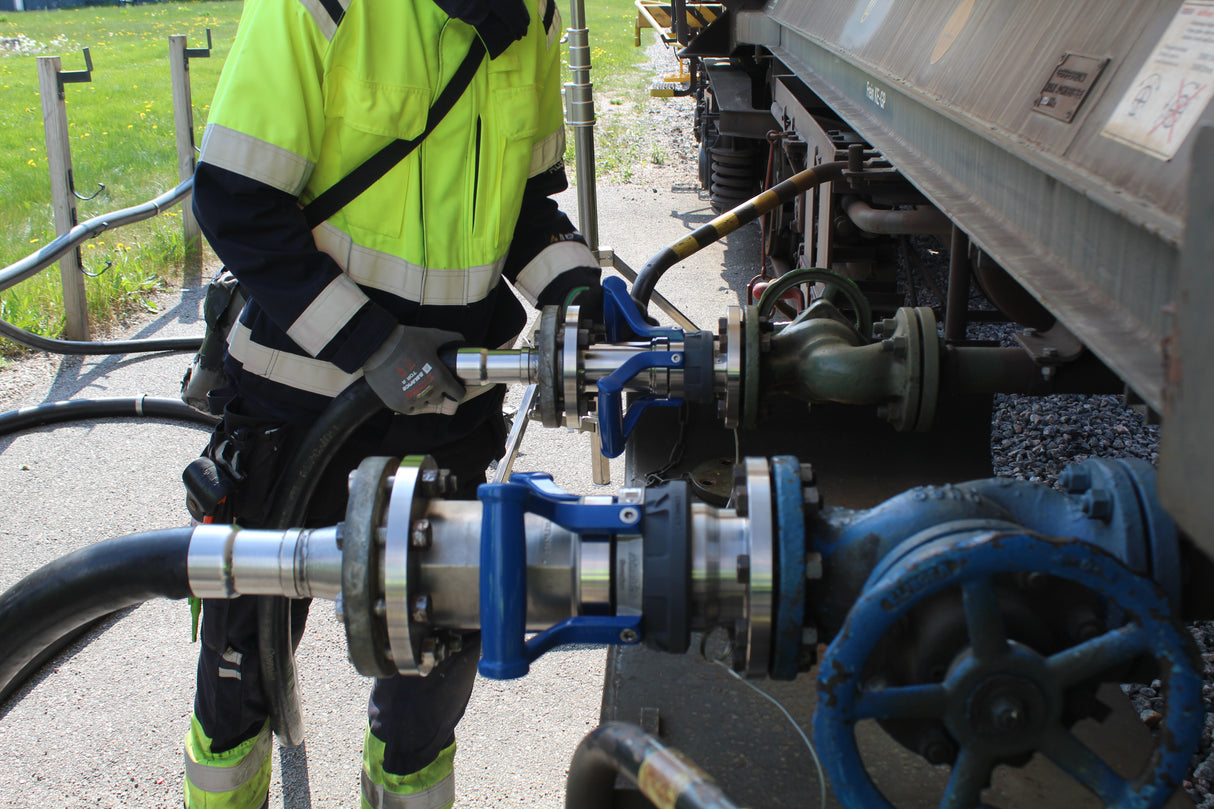

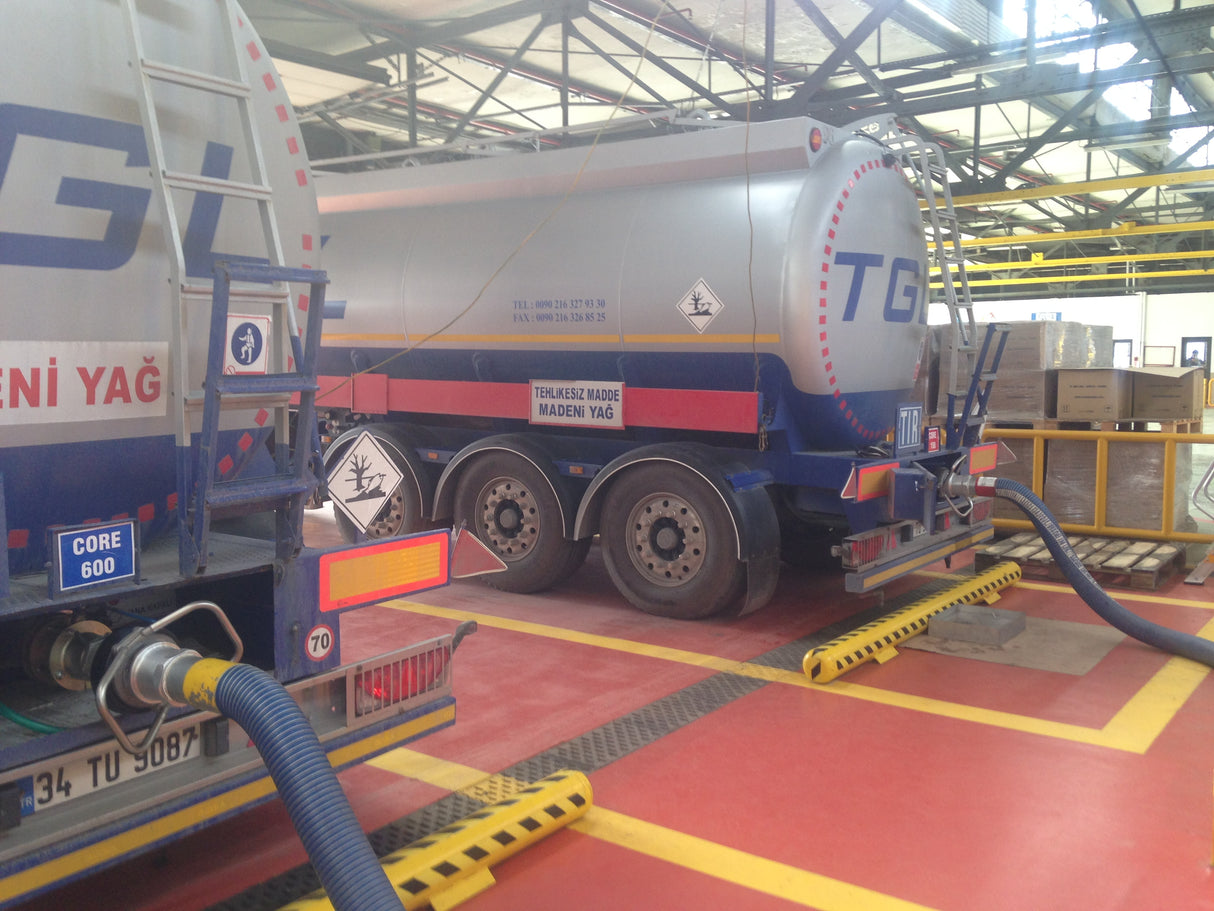

The MannTek Dry Disconnect Hose Unit (female) provides a safe, spill-free solution for transferring hazardous or sensitive fluids in applications such as tanker loading, oil & chemical handling, and food or pharmaceutical processing.

Manufactured to Stanag 3756, this hose unit is fully compatible with other bayonet-style dry disconnect couplings to the same standard, including Todo and Avery Hardoll. An internal valve remains closed when disconnected, preventing product loss. When connected to a matching tank unit with a simple quarter-turn, full flow is achieved, with automatic shut-off on disconnection for a true drybreak operation.

Key Features & Benefits

• Sizes from 1" to 8"
• TEAM standard front flanges: 56mm – 238mm
• Materials include Aluminium, Brass, Stainless Steel, Titanium, Hastelloy & PEEK
• Seal options: FKM (Viton®), NBR, EPDM, FFKM (Kalrez® / Chemraz®)
• Integrated 360° hose swivel to reduce hose twist and improve handling
• High flow rates with low pressure drop
• BSPP, NPT, ACME, Whitworth and special threads available
• ASA, PN and eccentric flange options
• Optional keyed/selectivity to prevent cross-connection
• Drain, parking devices, plugs and caps available
• Fully configurable to suit application requirements

Please Watch how MannTek Dry Disconnect Couplings deliver safe, spill free hose connections in real world applications.

Watch the video below to learn about the benefits of MannTek dry disconnect couplings for chemical handling, including how the design minimises leaks and improves safety during fluid transfer operations.
