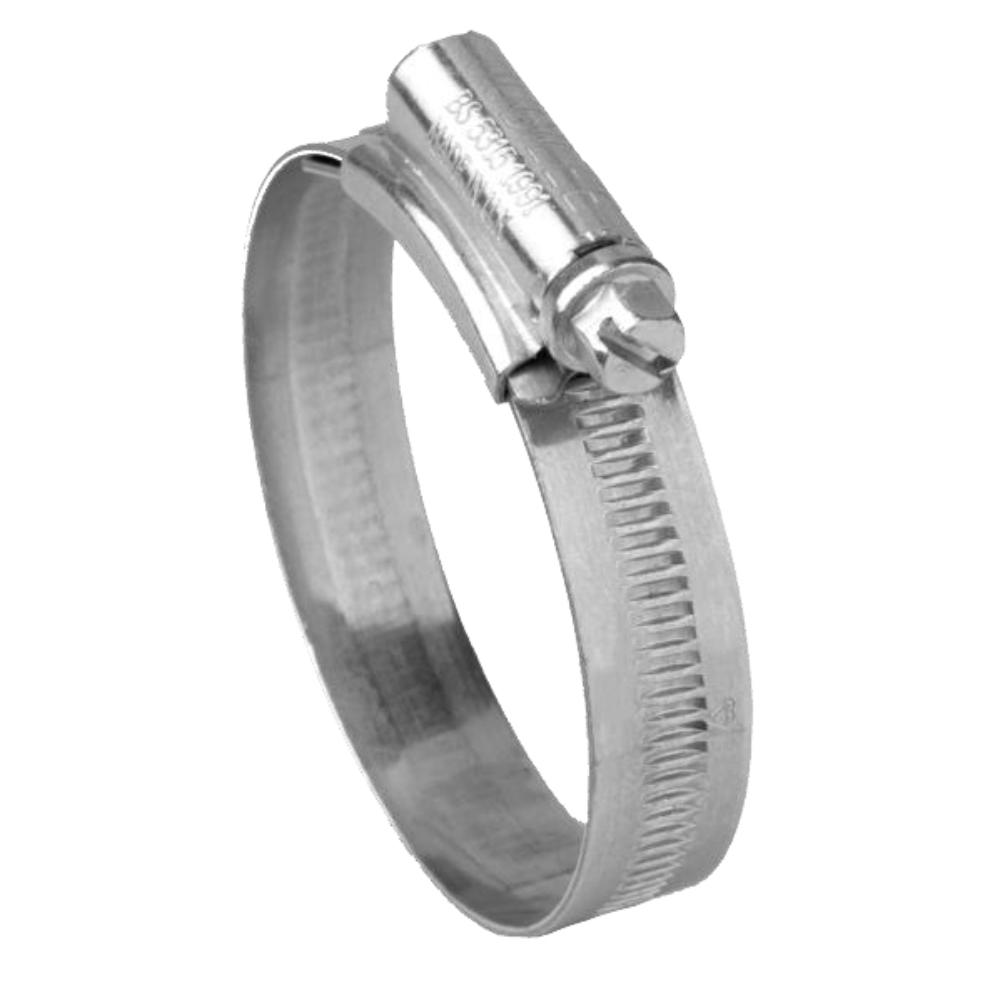

Jubilee Clips Original Range Mild Steel - Zinc Protected
Jubilee Clips Original Range Mild Steel - Zinc Protected - 9.5-12 - OOO (BOX OF 10) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Jubilee Clips Original Range Mild Steel - Zinc Protected
Original Range Jubilee® Clips in zinc-protected mild steel are the most popular clips in our range. Ideally suited for most day-to-day requirements for joining hose in areas such as the automotive industry and the automotive aftermarket, agricultural applications, such as irrigation and farm machinery, pneumatic and hydraulic applications in the industrial sector, hardware/DIY applications and in construction.
Quality assurance: DIN3017.
Corrosion resistance: 240hrs NSS Test.
Fastening: 7mm A/F screw.
Band width is 9.9mm for products with a range (mm) of 9.5-12, 11-16 and 13-20. Band width is 13.0mm for all other products.
| Products with a range (mm) of: | Recommended Torque (Nm) |
| 9.5-12, 11-16, 13-20. | 3.4 |
| 16-22, 18-25. | 4.2 |
| 22-30, 25-35, 30-40, 32-45. | 5.1 |
| 35-50, 40-55, 45-60, 120-150, 135-165, 158-190, 184-216, 210-242, 235-267, 260-292 and 286-318 | 5.9 |
| 55-70, 60-80, 70-90, 85-100, 90-120 and 110-140 | 6.7 |
Further information and data regarding BS No., range in inches, band thickness, max. torque (Nm) and max. pressure (PSI) can be found on the datasheet.
