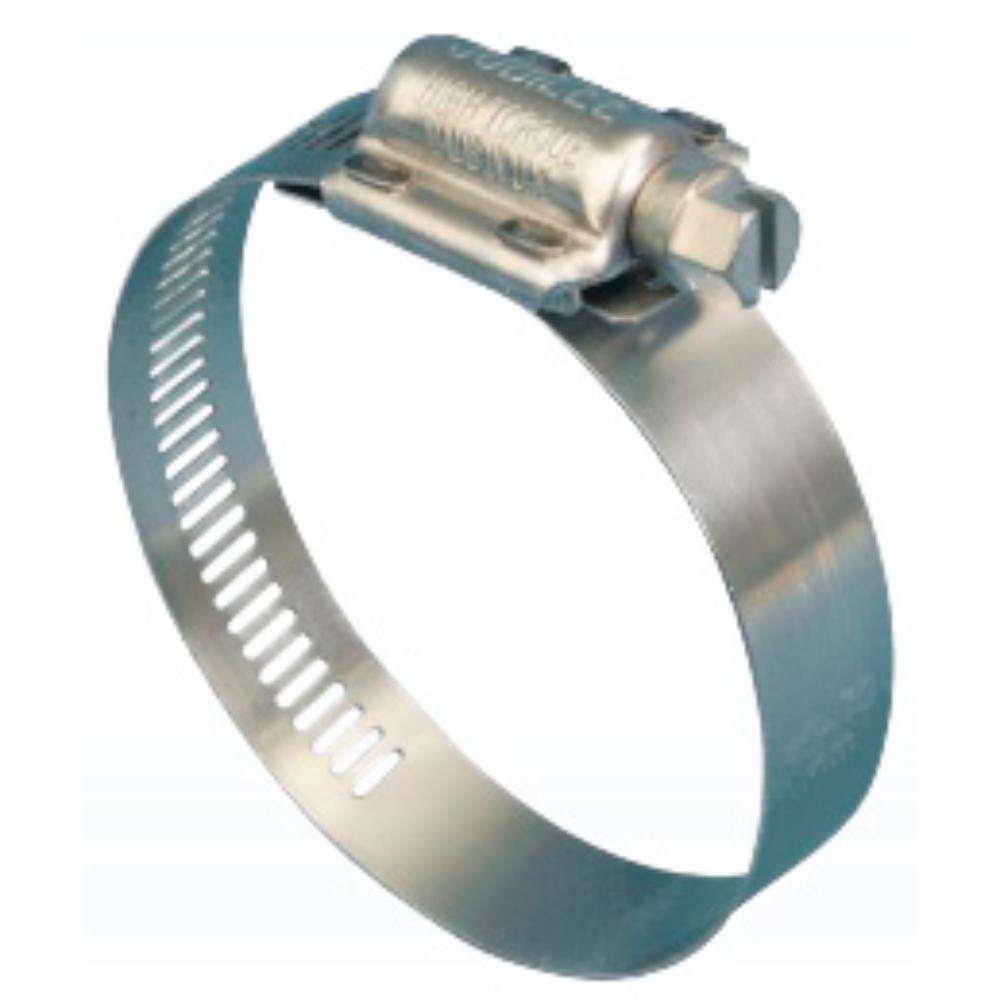

Jubilee Clips High Torque 304 Stainless Steel

Jubilee High Torque Clips are suitable for heavy duty applications with plastic or reinforced hoses. The high clamping forces make this clip suitable for heavy duty applications where stubborn leakage or vibration issues make lesser clips and clamps unsuitable. These heavy duty Jubilee clips are widely used in industrial, agricultural, marine, and automotive sectors where reliability and performance under pressure are critical.

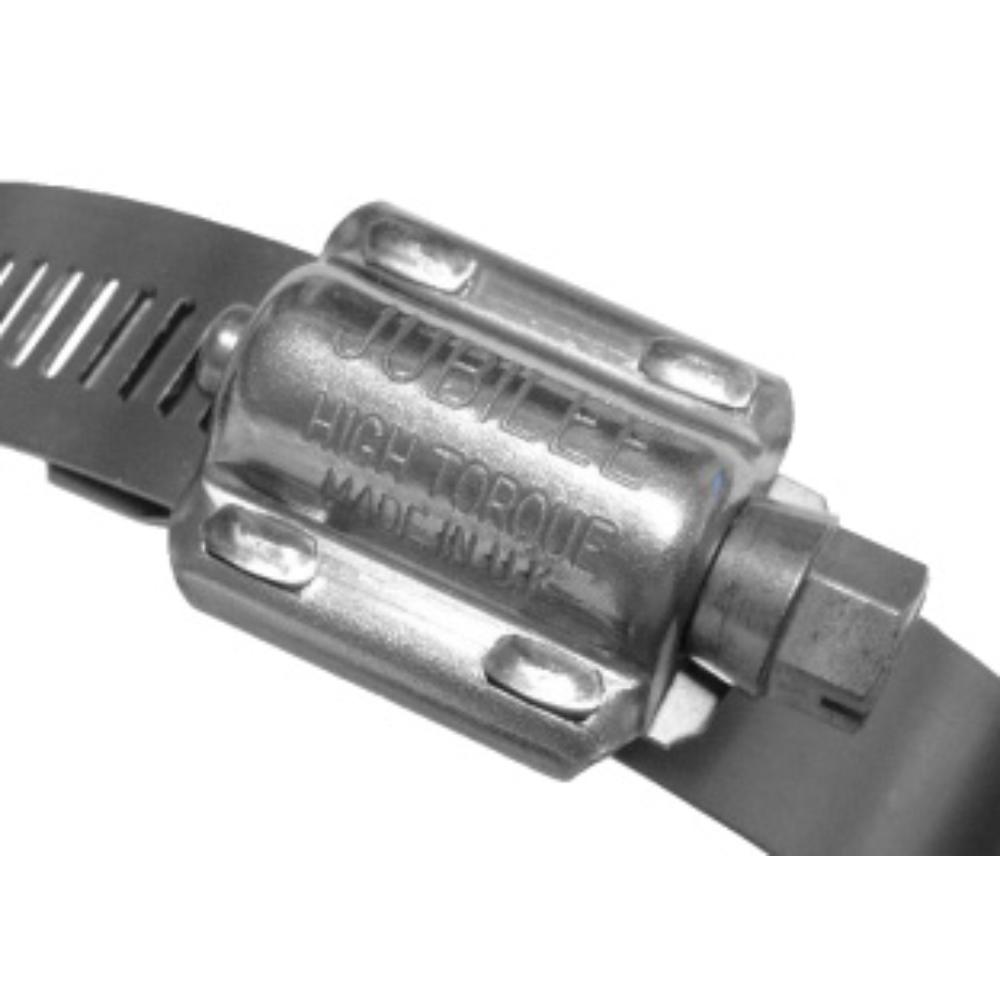

Jubilee High Torque clips are made of high-grade 304 stainless steel, with a two part housing and cut through band, keeping the band straight at the point of engagement and fully engaging all of the screw thread; giving a superior tightening torque. Although not suitable for use on soft hoses, where the high forces and perforated band may cut into the hose, these stainless steel jubilee clips are ideal where a high clamping force is required and with a flexible band material they can achieve a high level of friction even against a smooth surface such as a metal pole.

With a wide clamping range compared to alternative heavy duty clamps, stock requirements are reduced. The flexible band also offers better sealing at lower torques than nut and bolt style heavy duty clamps, which, combined with weight saving benefits, the clips provide a versatile and efficient heavy duty stainless steel clamp solution for a broad range of applications, making Jubilee High Torque Clips a versatile and superior heavy duty clamp.

Band width is 16mm for all the different ranges (mm).

Recommended torque is 11.9Nm for all the different ranges (mm).

Further information and data, such as the range in inches, band thickness (mm), max torque (Nm) and max pressure (PSI) can be found on the datasheet.
