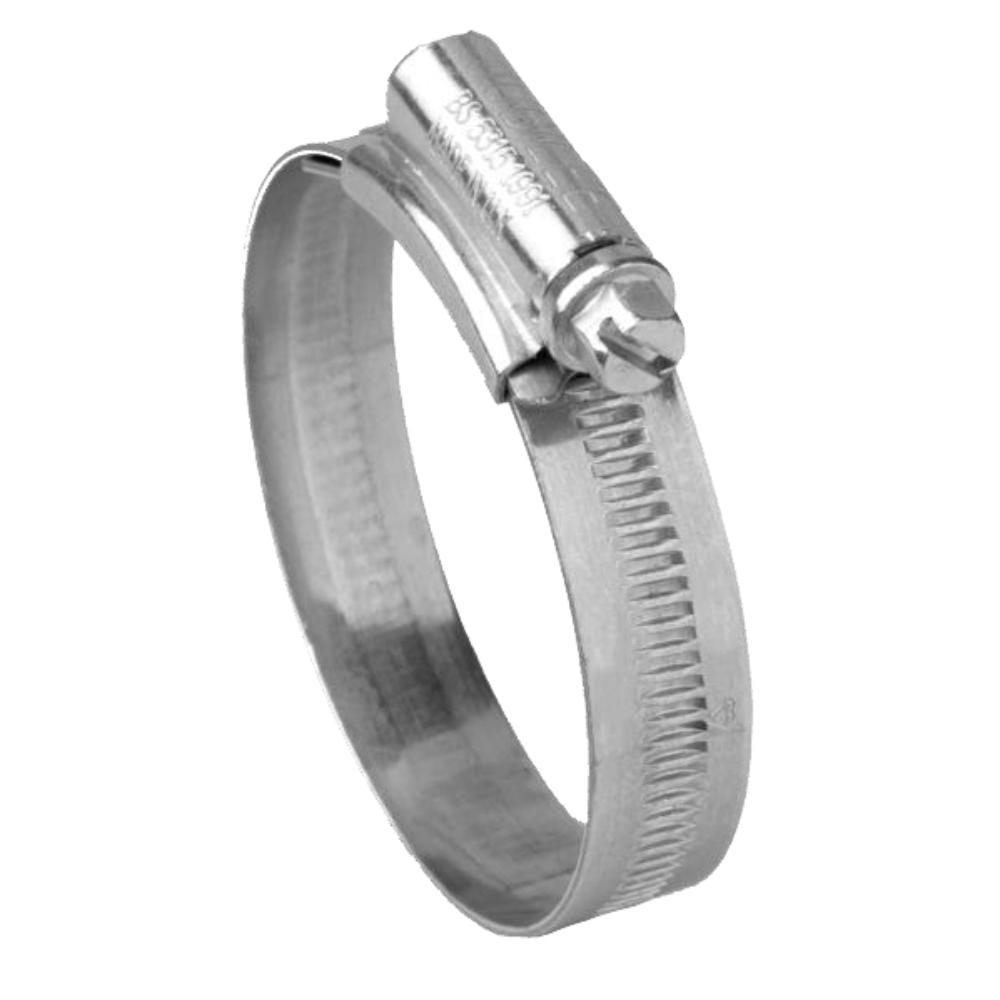

Original Range Stainless Steel Jubilee Clips | Jubilee Clips

Description

The most versatile of clips in the Jubilee® range, our original range Jubilee® hose clips in 304 (18/8) stainless steel are widely used across all industries where hose clips are used to secure hoses, as well as for other applications. These stainless steel Jubilee clips are designed to provide long-lasting, corrosion-resistant performance, making them ideal for environments where reliability and durability are essential. Their corrosion resistance enables their use in the marine, oil and gas and food sectors as well as the agricultural, hardware and industrial sectors, where higher corrosion resistance is required.

Whether you’re securing hoses in automotive, marine, oil and gas, food-grade, agricultural, industrial or general hardware settings, these clips are a proven choice for both professional and commercial use. Their strong resistance to corrosion makes them particularly well-suited for outdoor, chemical, and moisture-rich environments, where standard hose clamps might fail.

Backed by stringent manufacturing standards and tested to ensure durability, these Jubilee clips combine ease of use with dependable clamping strength. Their smooth band and high-quality worm drive design ensure even pressure distribution and reduce the risk of hose damage, especially in soft hose materials.

Quality assurance: DIN3017.

Corrosion resistance: 1000hrs NSS Test.

Fastening: 7mm A/F screw.

Band width is 9.9mm for products with a range (mm) of 9.5-12, 11-16 and 13-20. Band width is 13.0mm for all other products.

Products with a range (mm) of:	Recommended Torque (Nm)
9.5-12, 11-16, 13-20.	3.4
16-22, 18-25.	4.2
22-30, 25-35, 30-40, 32-45.	5.1
35-50, 40-55, 45-60, 120-150, 135-165, 158-190, 184-216, 210-242, 235-267, 260-292 and 286-318	5.9
55-70, 60-80, 70-90, 85-100, 90-120 and 110-140	6.7

Further information and data regarding BS No., range in inches, band thickness, max. torque (Nm) and max. pressure (PSI) can be found on the datasheet.

Further Information

Our stainless steel Jubilee clips in the original 304 range are designed with precision and tested under rigorous conditions to meet demanding performance standards. Below is an overview of additional technical data and product-specific information to support accurate selection and application:

Sizing and Range

Available in a wide variety of clamping ranges to fit hoses from 9.5mm up to 318mm in diameter.
Imperial equivalents are also available in the datasheet for international or legacy system compatibility.

Band and Screw Details

Band thickness: Typically 0.7 mm, ensuring a strong yet flexible fit. Thicker bands offer additional durability and resistance to over-tightening.

Screw Type: 7mm A/F hexagonal screw, compatible with most standard nut drivers and flat-blade screwdrivers for quick and secure fastening.

Screw Material: Also stainless steel, ensuring full corrosion resistance in harsh or exposed environments.

Mechanical Performance

Maximum Torque: Varies by clip size. Ranges from 3.4 Nm to 6.7 Nm depending on the product range (see torque table above).

Maximum Pressure Resistance: Typically up to 25 bar (362 PSI), depending on the hose material, diameter, and application.

This makes them ideal for low to medium pressure fluid systems, air lines, fuel lines, and irrigation hoses.

Environmental & Usage Ratings

Operating Temperature Range: -40°C to +120°C (short-term peaks up to 150°C possible depending on application).

Corrosion Resistance: Up to 1,000 hours in salt spray tests (NSS), making these ideal for coastal, marine, and food-grade environments.

Fully suitable for outdoor use, high-humidity environments, and contact with non-acidic fluids.

Certifications & Compliance

Compliant with DIN3017 standards, ensuring dimensional accuracy, performance reliability, and safe operation.
Manufactured under ISO 9001:2015 quality management systems.
Suitable for use in food-safe environments, depending on hygiene requirements of the application.

Common Applications

Automotive: Coolant hoses, fuel lines, intake systems
Marine: Bilge pumps, sea water lines
Food & Beverage: Low-pressure washdown and processing lines
Agriculture: Irrigation and slurry systems
General Industrial: Pneumatic lines, ventilation and light-duty suction hoses
